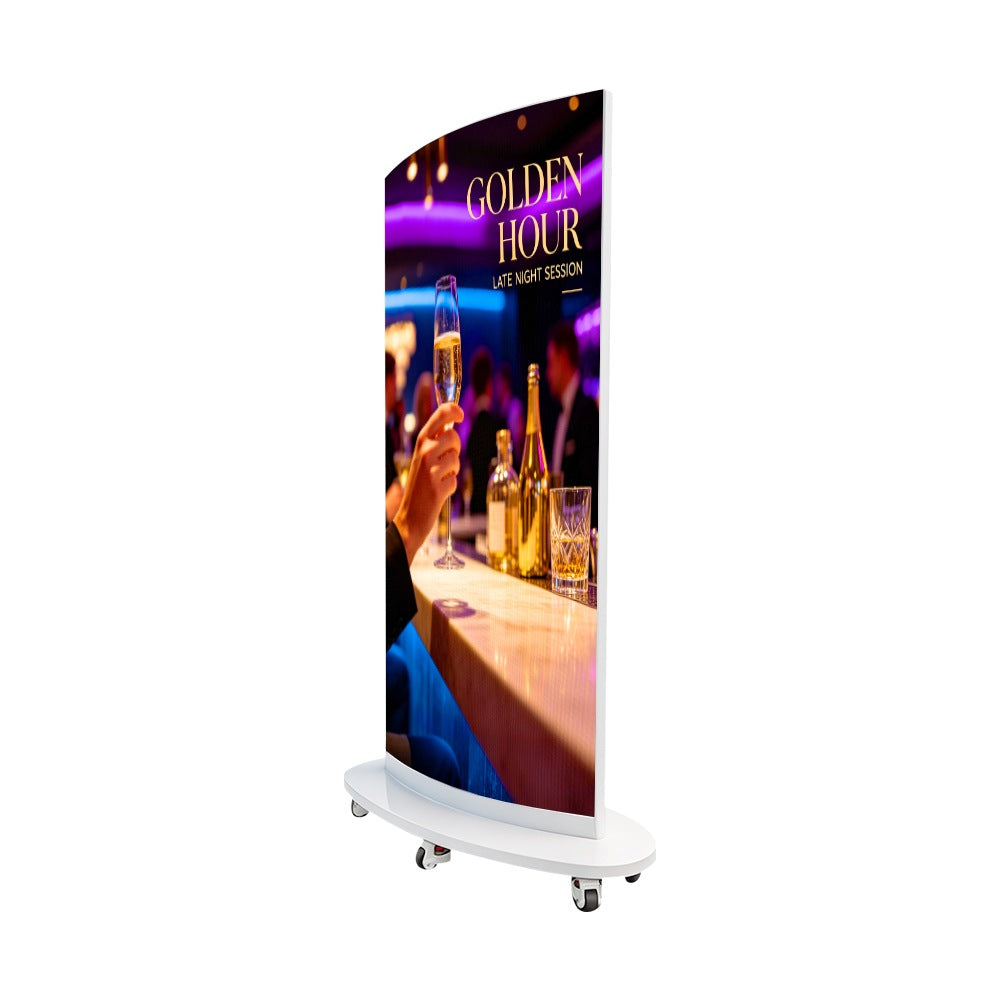

• Double side curved LED display poster front view

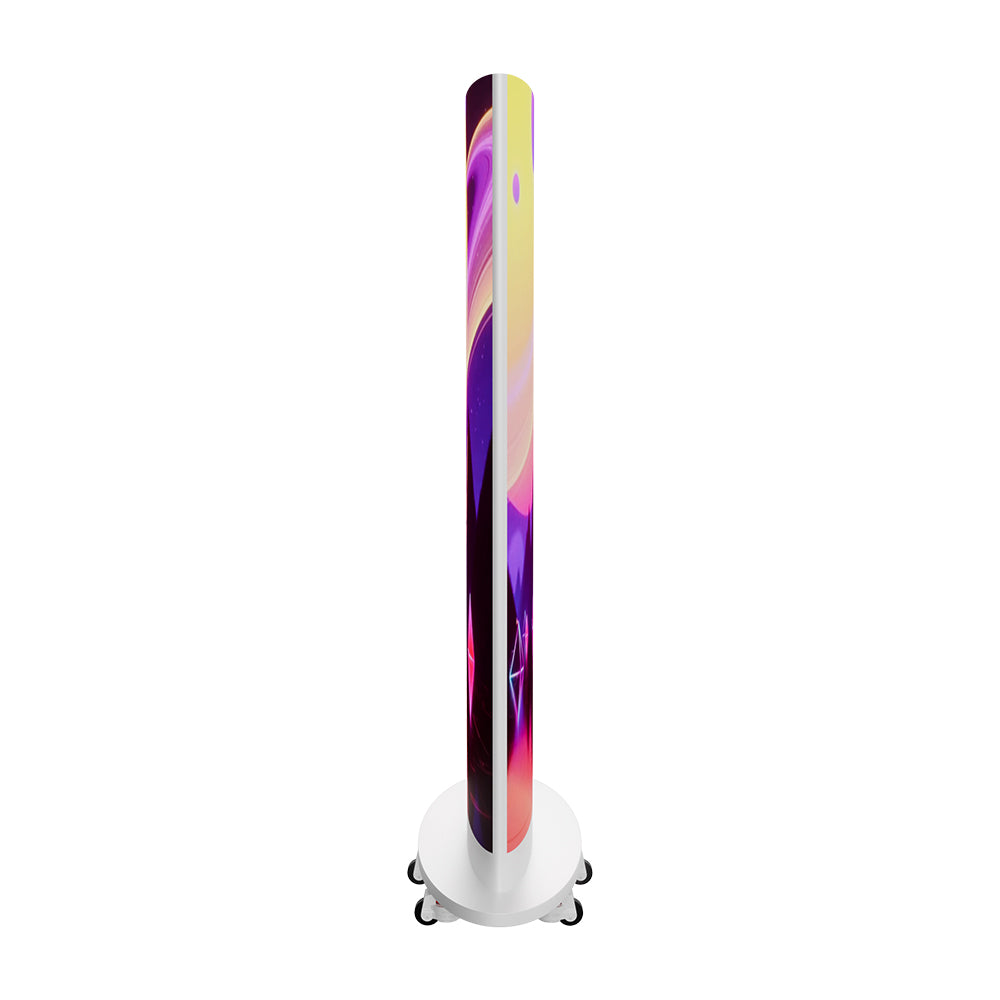

  • Double side curved LED display poster side profile

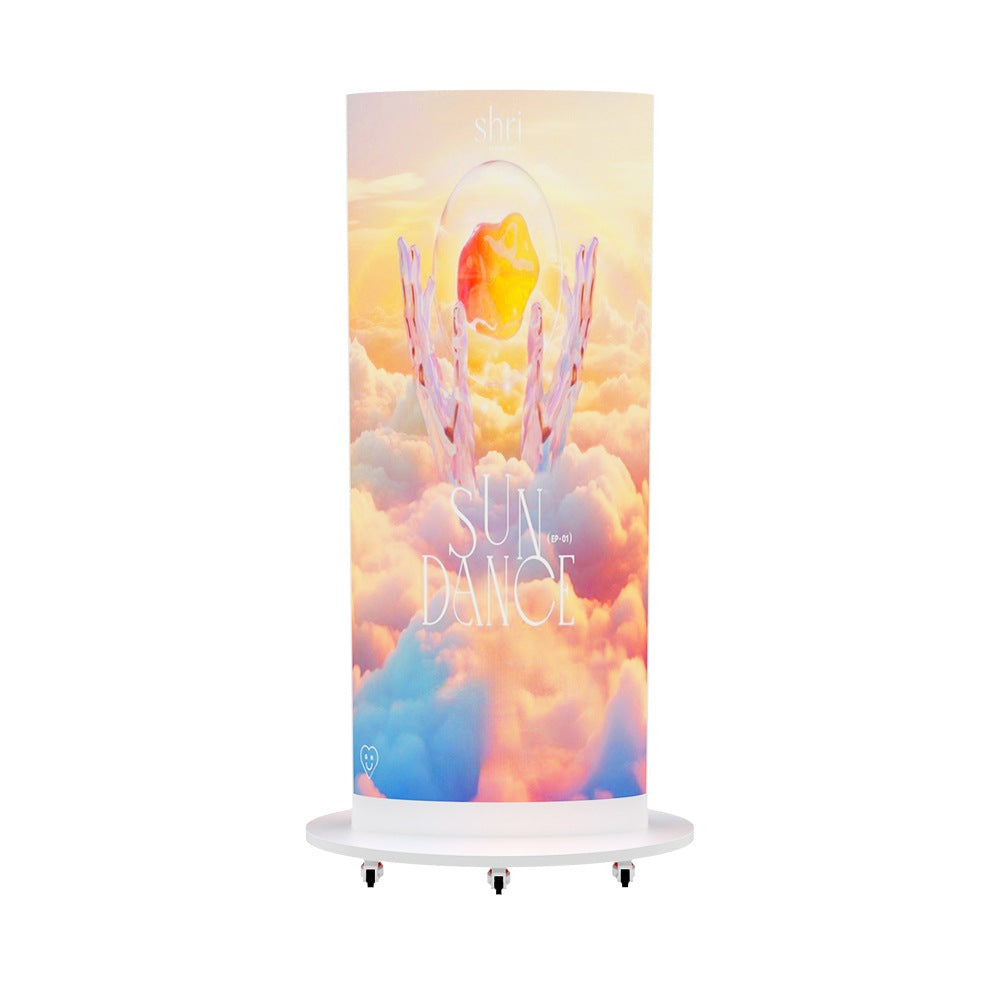

  • Rear display face of the double side curved LED poster

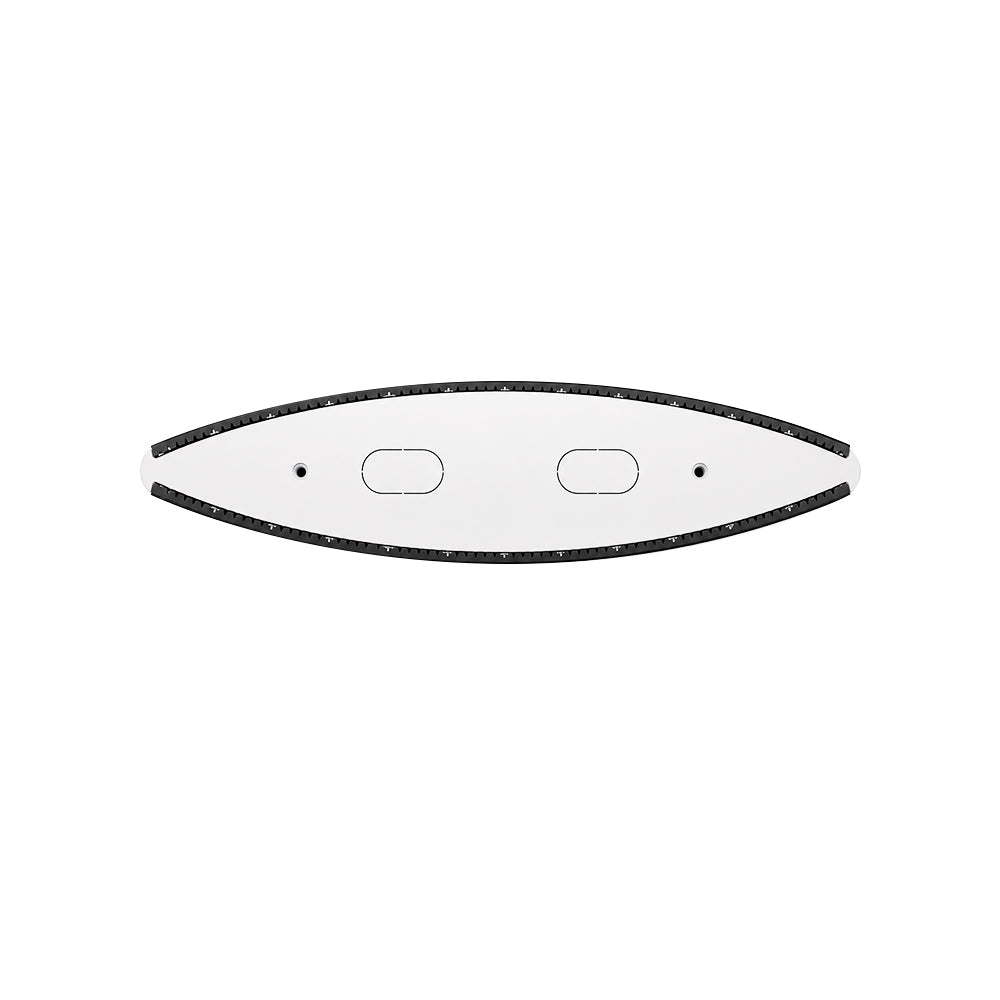

  • Curved top profile of the double side LED poster

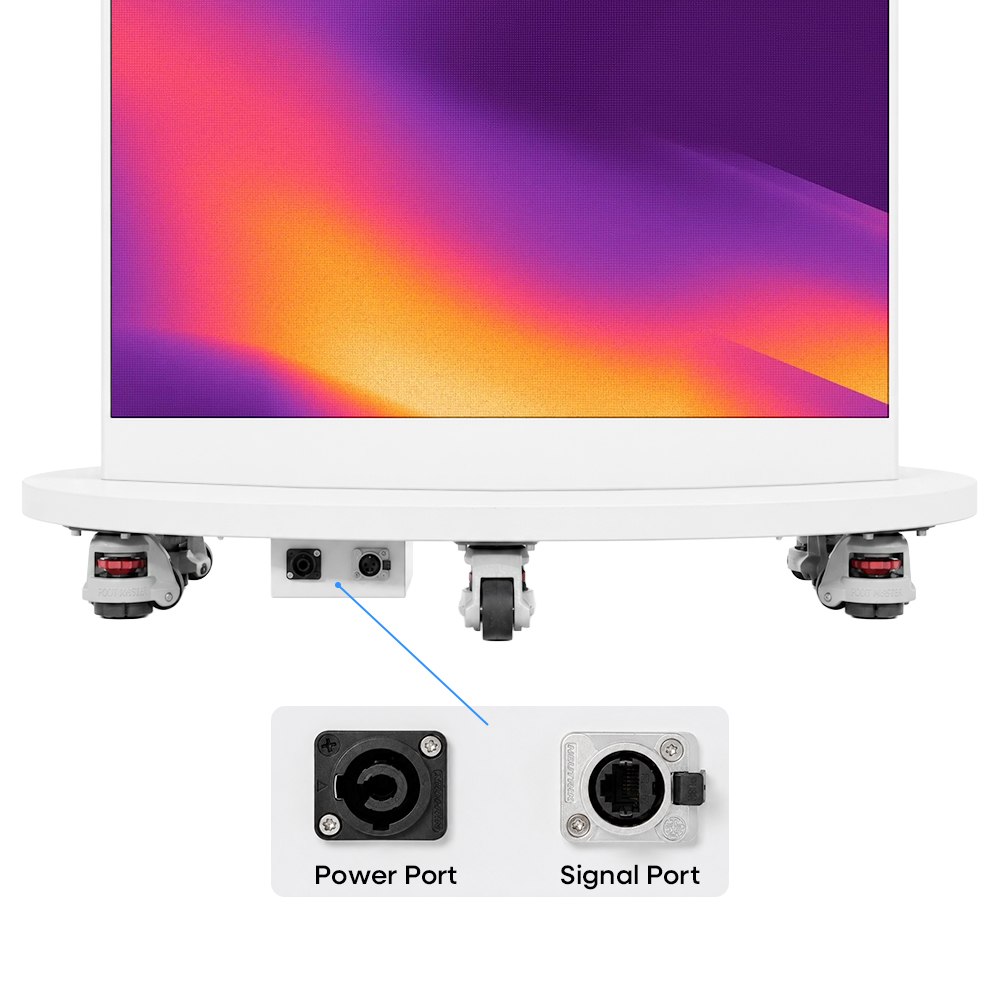

  • Base wheels and ports of the curved LED poster

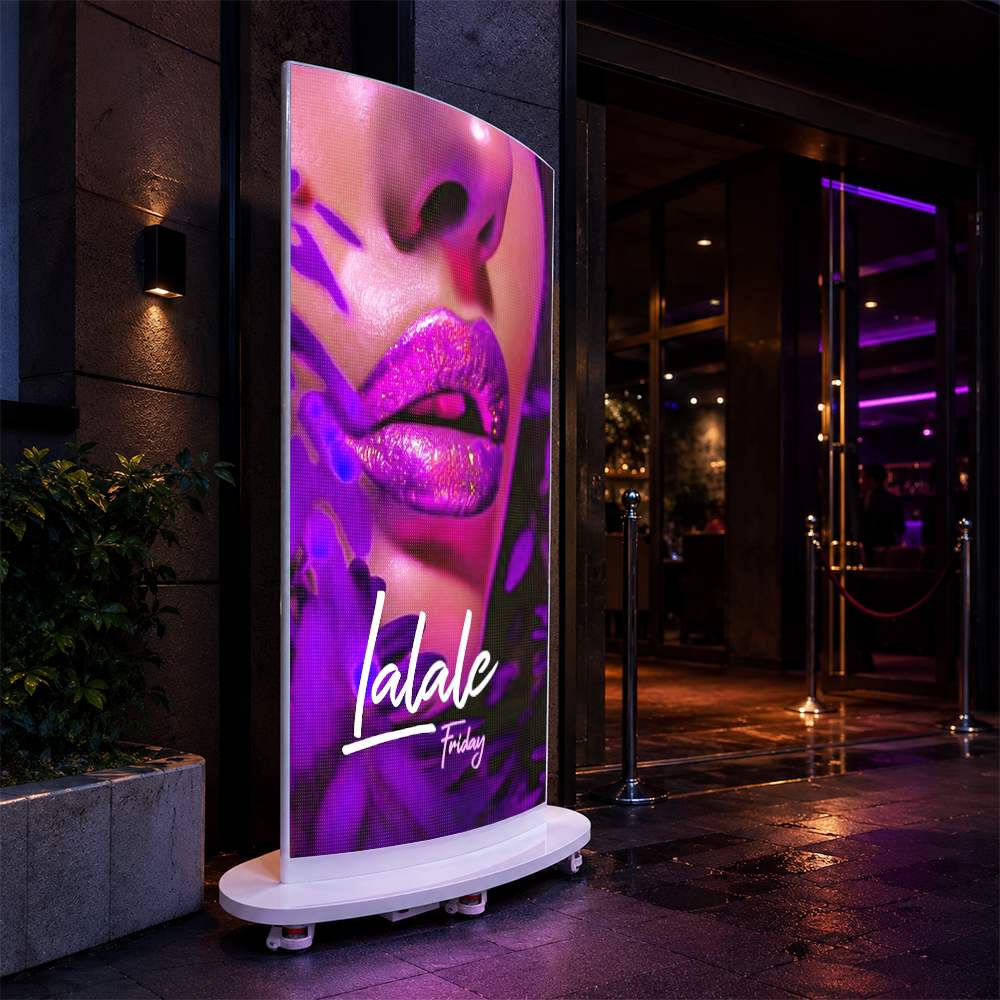

  • Double side curved LED poster at an event entrance

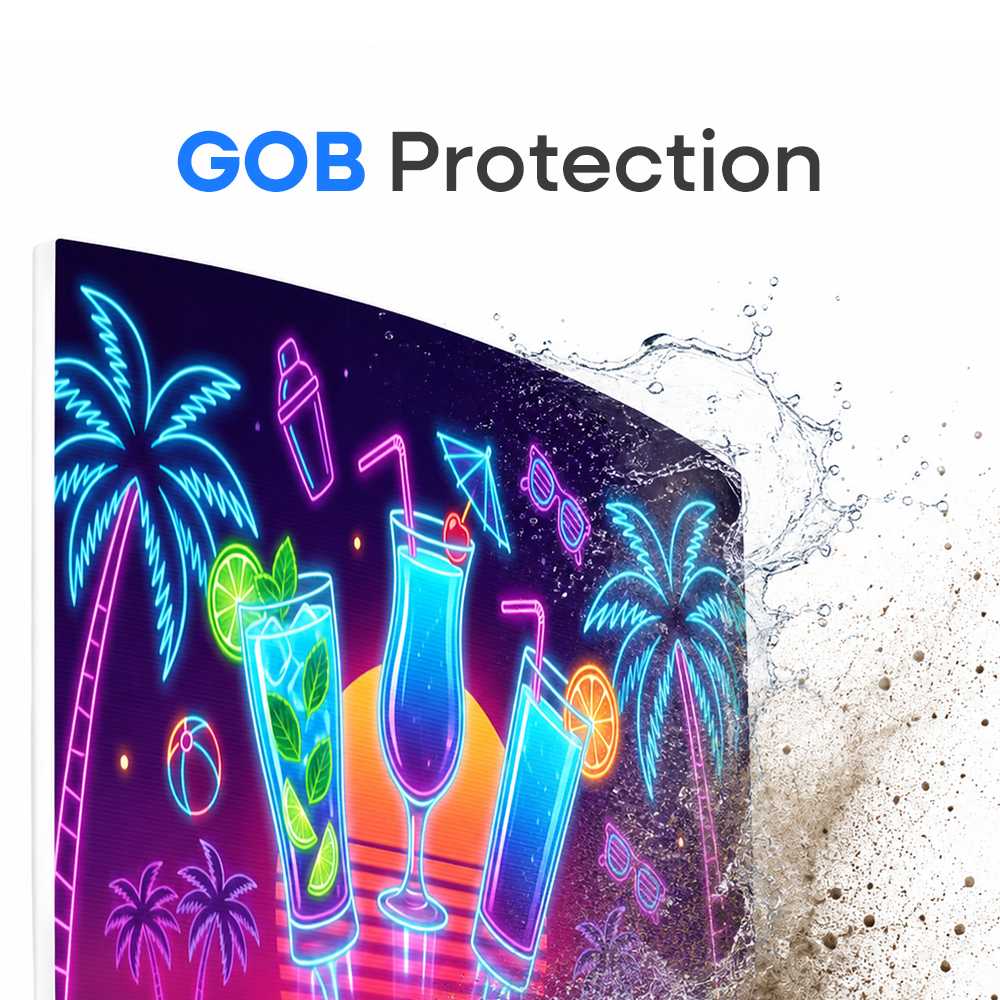

  • GOB protection on the curved LED display

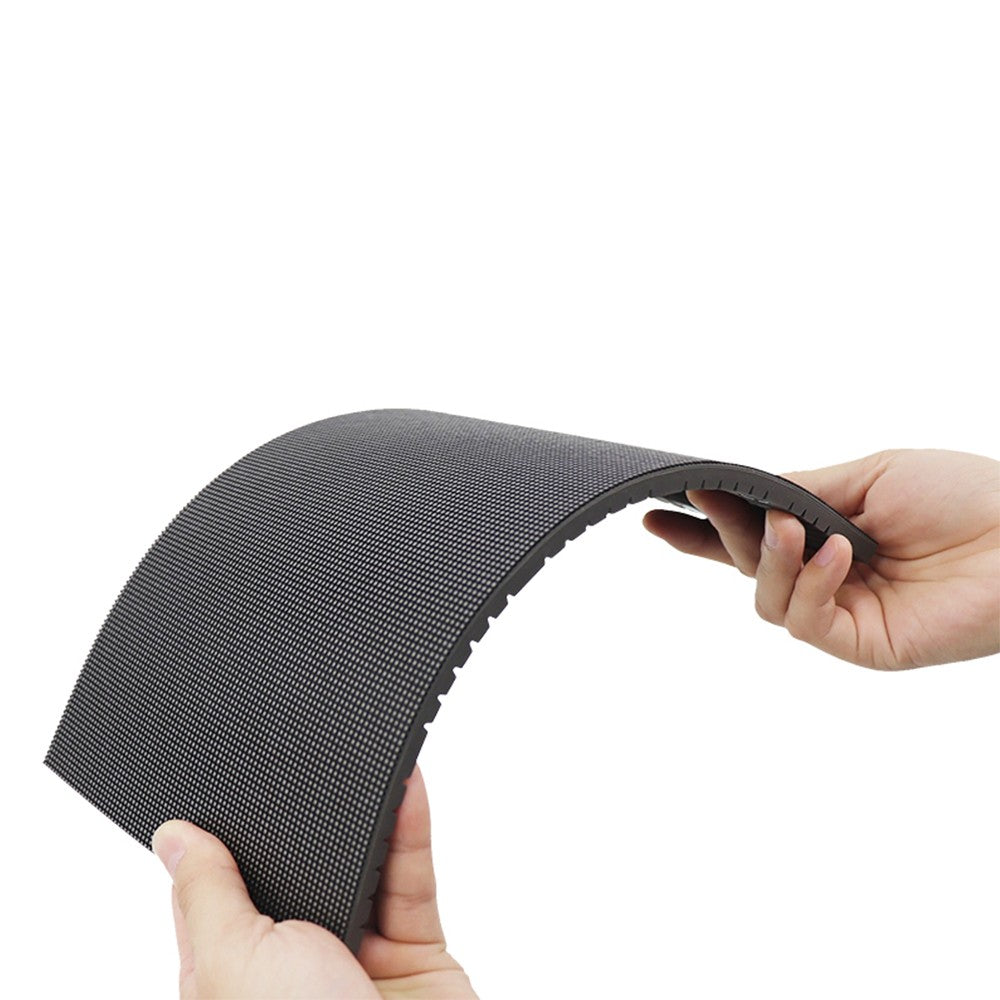

  • Flexible curved LED module

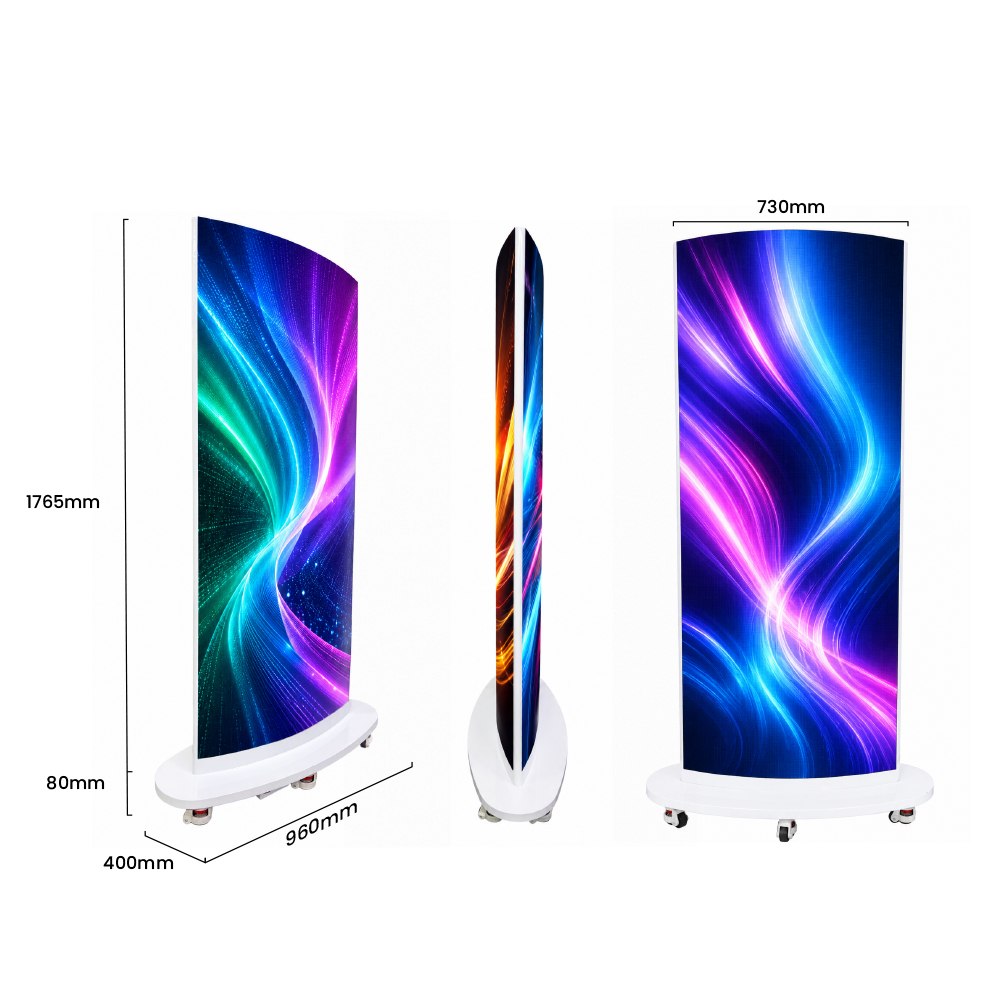

  • Double side curved LED display poster dimensions

TOP DANCE Double Side Curved LED Display Poster

Shipping From

$4,283.00 USD
$4,283.00 USD $3,499.00 USD
Los gastos de envío se calculan en la pantalla de pago.

Fast Shipping

  •  US Warehouse Pickup:

Ready within 1-3 working days after order. Customer arranges self-pickup.

  • US Warehouse Shipment:

Provide delivery address after order.

Ships in 2-3 working days, delivered in 4-7 working days.

  •  Warehouse Locations: Los Angeles / Chicago / Florida
  • Your order will be prepared and shipped from the nearest warehouse based on your location for faster delivery.
  • After the logistics order number is generated, customer service will send an email to notify you. Please pay attention to the delivery status.
  • For any shipping inquiries, please leave a message or contact our team directly.

Shipping Freight Notice

All products are Sold Exclusive of Shipping Fees. Freight is calculated based on your address and added to the order. Shipment will be arranged promptly after freight payment is completed.

Product Features

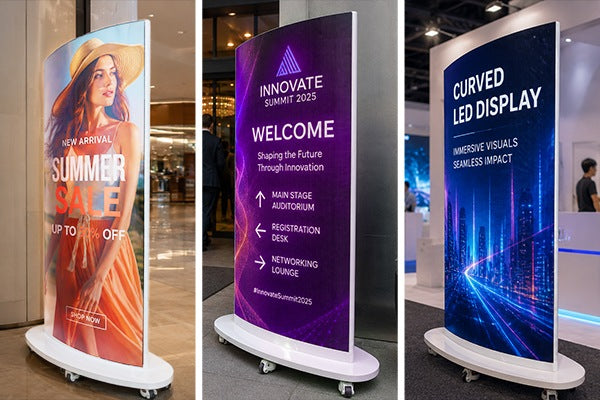

  • Double side curved LED posters for two-direction visibility

    Built to Be Seen from Both Directions

    Two curved display faces turn one placement into two audience-facing messages. Place the poster in a store entrance, aisle, exhibition walkway or event lobby to keep brand content visible to people approaching from either direction.

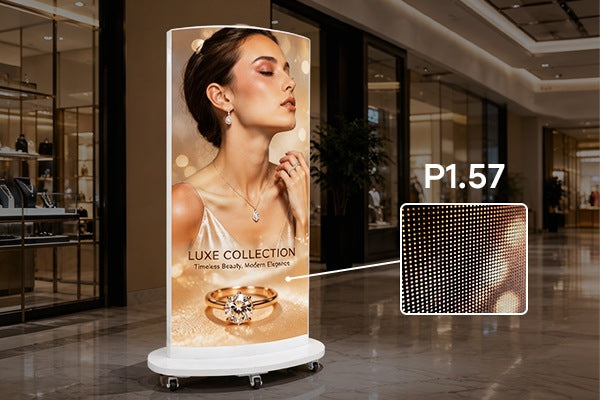

  • Curved P1.57 LED display detail for close-range viewing

    Curved P1.57 Detail for Close-Range Viewing

    The 730 mm-wide curved face, P1.57 LED pitch and 768 x 1024 resolution help text, product visuals and motion graphics stay refined at close viewing distances while giving campaigns more depth than a flat poster.

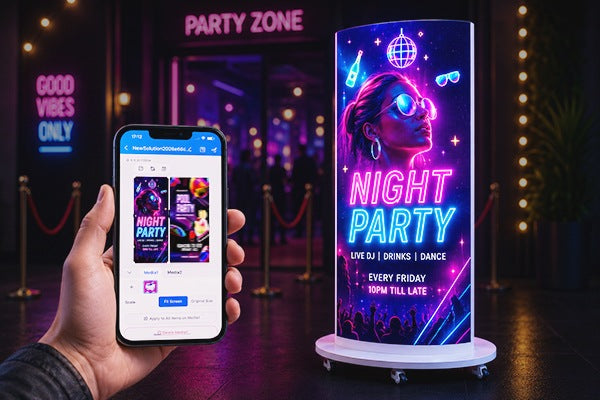

  • Phone content control for the double side curved LED poster

    Update Content Without Interrupting the Floor

    Use LedArt on a phone or HDPlayer on a PC to update supported content through the HUIDU HD-A5L controller. Built-in wheels make it practical to reposition the display for changing campaigns, entrances or event zones.

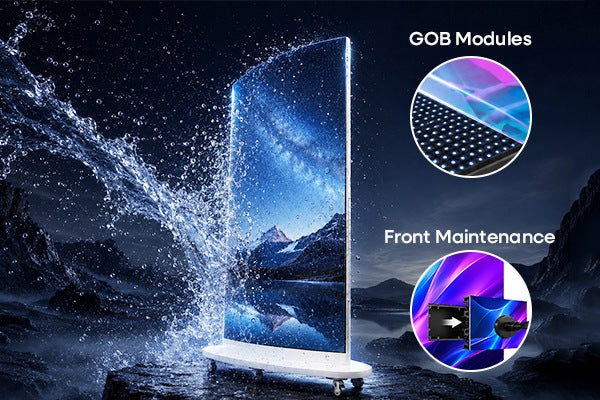

  • GOB surface protection and front maintenance

    GOB Surface Protection and Front Access

    GOB-treated soft LED modules add surface protection for busy public environments, while front maintenance access is designed to simplify routine screen service when the unit is positioned against a wall or within a display layout.

Applications

  • Double side curved LED posters for two-direction visibility

Specifications

Click to view specifications

Display

  • Pixel pitch: P1.57
  • Display resolution: 768 x 1024
  • Display width: 730 mm
  • Display height: 1765 mm
  • LED module size: 240 x 120 mm
  • LED module quantity: 84 pcs
  • Brightness: 600–1200 nits
  • Refresh rate: 7680 Hz
  • LED surface treatment: GOB

Control and Connectivity

  • Controller: HUIDU HD-A5L
  • Content control: Phone / PC
  • Software: LedArt / HDPlayer
  • Interfaces: HDMI, Ethernet, Audio Out, USB

Physical

  • Product size: 960 x 400 x 1845 mm
  • Screen thickness: 80 mm
  • Maintenance: Front
  • Net weight: 68 kg

Shipping

  • Shiping From China:

    1. It takes 1–2 weeks for the factory to manufacture the product.

    2. Free shipping in 45-60 days.

  • Pickup or Shipping From US Warehouse

    1. You Can Pick up in LA/CHIO Warehouse, no waiting Time.

    2. Delivery in 3-7days

FAQ

Address frequently asked questions about this product to minimize any concerns or uncertainties that might deter a customer from making a purchase.

Can the two sides show different content?

The product is designed with two display faces for two-direction visibility. Confirm the required content layout and playback configuration with TOP DANCE before ordering if each side must run independently.

Is this double side curved LED display poster suitable for close viewing?

Yes. Its P1.57 pixel pitch and 768 x 1024 resolution are intended for applications where guests or shoppers may stand near the display, such as entrances, retail aisles and exhibition spaces.

How is content updated?

The display supports phone and PC content control through LedArt and HDPlayer, using the HUIDU HD-A5L controller. Confirm the supported file formats and network setup for your installation with TOP DANCE.

Can it be moved between locations, and how is the screen serviced?

Yes. The unit is fitted with wheels for repositioning within a venue. Allow for the 960 x 400 x 1845 mm product footprint and 68 kg net weight when planning access routes.

How is the screen serviced?

The source specification lists front maintenance and GOB-treated soft modules. Ask TOP DANCE for the service procedure and spare-module recommendation for your project.

Can I buy this Product in the U.S. or near my location?

In-stock at U.S. warehouses, including Los Angeles and Chicago.
Local pickup or 1–3 day regional delivery helps you receive products fast and keep projects on schedule..

What warranty and support are included?

Comes with a 3-year warranty.
U.S. warehouse support enables quick spare parts supply, reducing downtime and keeping your business running smoothly.
